Application:-

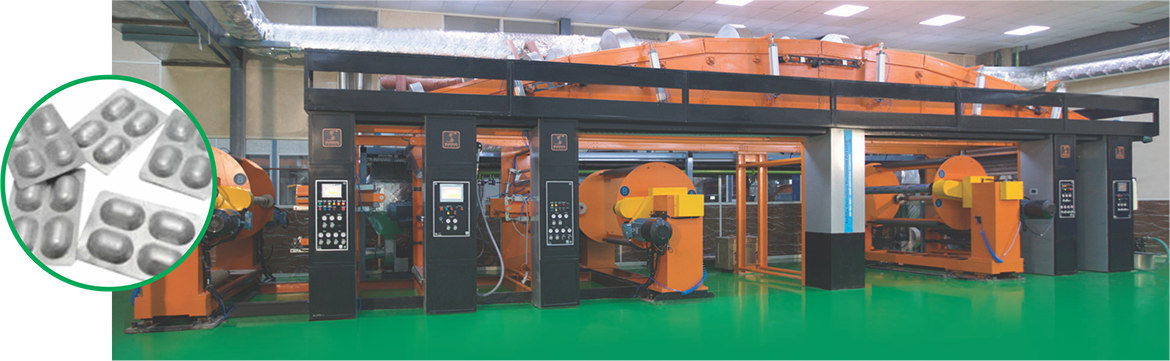

Water / solvent based wet lamination by multiple coating systems and drying. Dry lamination of two webs on dry lamination nip after dryer exit on re-winder side with a dry lamination attachment.

Technical Specification:-

Materials to be processed

Materials to be processed
Materials To Be Processed Aluminium Foil, PET, MET PET, BOPP, LDPE, Paper
Maximum Un-winder / Re-winder Roll Diameter 1000 mm
Mechanical Speed 200 MPM

  • Adhesive Coating : Gravure coating method with Doctor Blade Application Method Water Based Lamination: Doctor Blade Application Method

  • Pneumatic application for application roller and pressure roller, vertical drying hood lamination nip in wet coating and lamination unit

  • Pneumatic application for doctor blade and pressure roller, drying hoods.

  • Drying tunnel is distributed in different heating zones having individual entry and exit port for better flow control in each zone.

  • Dry lamination attachment with nip after drying tunnel before chilling station.
