Application:-

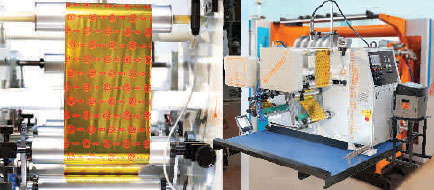

Applicable packaging materials include paper laminate, metalized paper, aluminum foil / paper, composite film etc. The surface Embossing Machine not only provides attractive beauty, but also greatly increases visual effect. Inline registration feature will allows to emboss in area as per the design on existing printing

Technical Specification:-

Materials to be processed: Printed Paper-Al, printed Aluminium, Printed paper
Mechanical speed 150 MPM
Unwind Diameter 1000mm

General Specification:-

  • Rewind / unwind stand incorporate with safety chuck based air shaft / shaftless makes the loading easier

  • The unwind tension is sensed by load cell sensor and compared to set tension. The auto controller will increase or decrease tension according to the calculated differences automatically.

  • The embossing system is hydraulically operated to achieve consistent grain depth.

  • Designed Embossing roll in combination with paper roll ensures required results.

  • No product damage and high production efficiency.

  • Equipped with meter counter for machine auto stop when setting length reached.
