Application:-

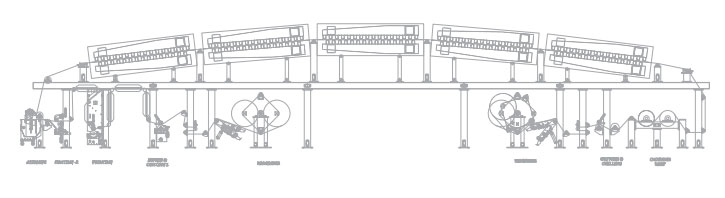

To coat water based coting through three roll coating with air knife system and mayer bar unit with an air flotation drying system consist of diesel fired hot air system distributed in total five zone of four meters each.

Materials to be processed ....

Base paper of 70 - 150 gsm

Max dia of parent roll ....

1200 mm

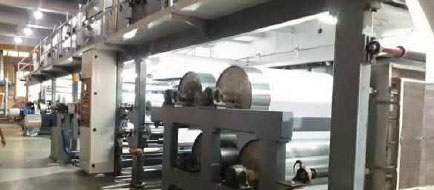

Turret type unwind & rewind stand with safety chuck & air shaft. Top dryer hood will be provided with pneumatic cylinders for easy nozzle cleaning and easy material movement monitoring. The IR bank at the entry point of the dryer equipped with a pneumatic lifting system interlocked with machine start sequence. Air volumes can be controlled through suction damper, recirculation & exhaust dampers at each station all tray, tanks & dryer inside fabrication and machine portion coming in contact with PVDC vapor are made from SS – 316 material or epoxy coated.

Speed of the machine ...

Max mechanical speed of the machine -- 200 meters per minute.
